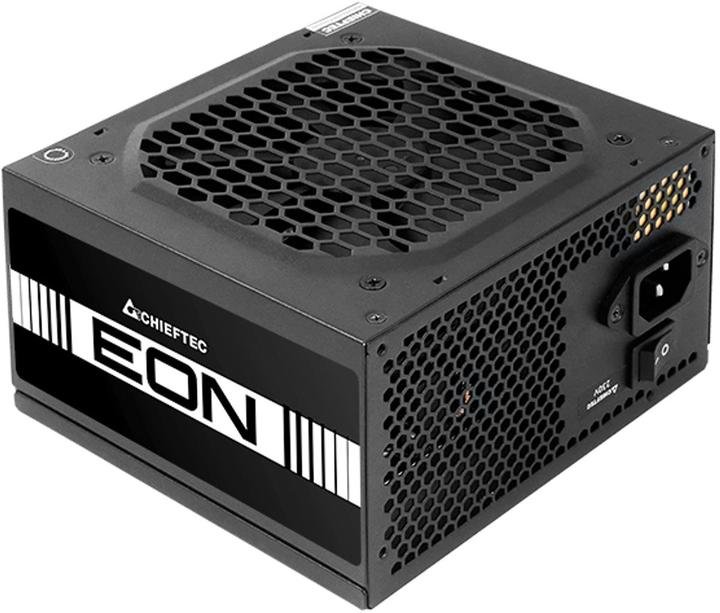

| Model | EON 500W |
|---|---|
| Article no. | ZPU-500S |
| EAN code | 0753263078612 |
| Weight (without/with package) | 1.2 kg / 1.45 kg |
| AC Input | 200-240V~ / 3.5A |
| Frequency | 50Hz |
| +5V | 20A |
| +3.3V | 20A |
| +5V & +3.3V combined | 100W |
| +12V1 | 37A |
| +12V2 | — |
| +12V1, +12V2 combined | 444W |
| P.F. | >0.9 |
| -12V | 0.4A / 4.8W |
| +5VSB | 2.5A / 12.5W |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS(4+4) | 2 |
| 8 PIN PCIe (6+2) | 2 |
| SATA/MOLEX | 4/2 |
| 20+4 PIN ATX | 650 |
|---|---|
| 8 PIN EPS (4+4) | 1 x 700/100 |
| 8 PIN PCIe (6+2) | 1 x 550/150 |
| SATA/MOLEX | 2 x 450/150/150 |
| Specification | ATX 12V 2.3 |
|---|---|
| Form factor | ATX |
| Efficiency | 80Plus Standard 230V EU |
| Dimension (DxWxH) | 140mm x 150mm x 86mm |
| PFC | Active PFC (0.9) |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Overload protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Under Voltage protection) |
| Warranty | 24 Months |
