Features
80 PLUS Gold certified
Fully modular design
120mm Smart Hydraulic Bearing (HYB) Fan
Main Japanese capacitors
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact size

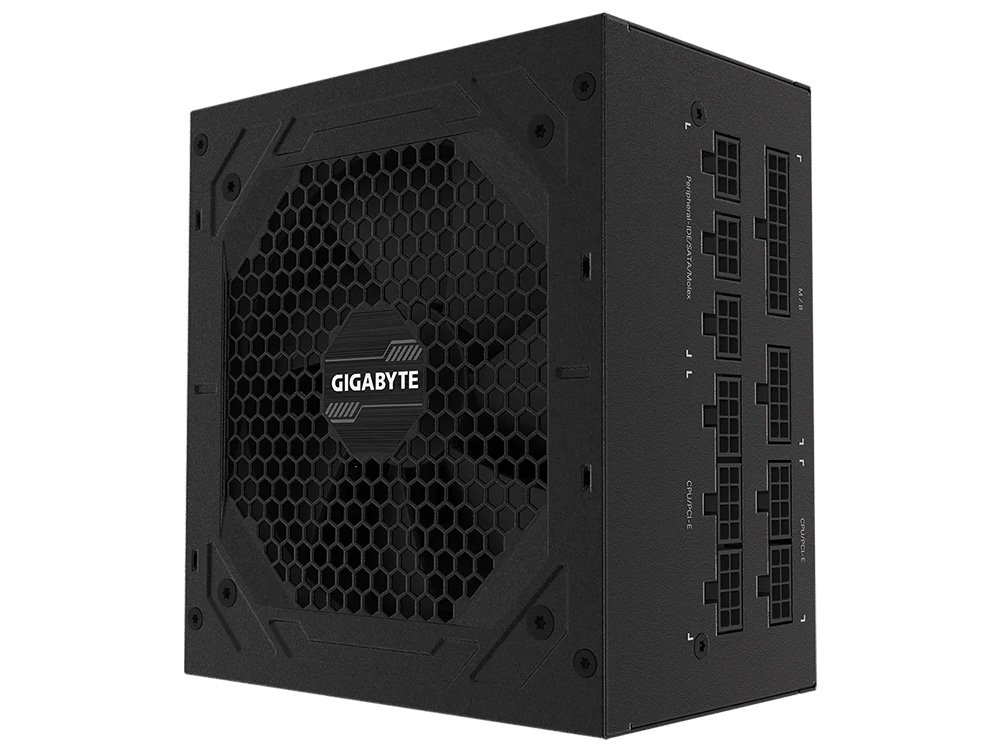

Model: GP-P850GM
Type: Intel Form Factor ATX 12V v2.31
PFC: Active PFC (>0.9 typical)
Input Voltage: 100-240 Vac (full range)
Input Current: 12-6 A
Input Frequency: 60-50 Hz
Output Capacity: 850W
Dimension: 150 x 140 x 86 mm
Fan Type: 120mm Hydraulic Bearing ( HYB ) fan
80 PLUS: Gold
Efficiency: 90% at typical load
MTBF: >100,000 hours
Protection: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signa: 100-500ms
Hold Up Time: >16ms
Cable Type: Flat, All black
Connectors:
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+150mm *1
