• Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
• Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.
• Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
• 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
• Maximized Coverage: 4× Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
• EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.
• Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
Wireless
Wi-Fi Class: BE3600
Wi-Fi (2.4 GHz): 688Mbps
Wi-Fi ( 5 GHz): 2880Mbps
Wireless Standards: 802.11be/ax/ac/a/b/g/n
Max Channel Width: 160MHz
Max Wi-Fi Modulation: 4K QAM
Wireless Security: WPA/WPA2/WPA3
Wireless Functions: Guest Network, IoT Network, Smart Connect, Wireless Schedule, WPS, AP Isolation, Airtime Fairness
Hardware
Dimensions: 250 × 119 × 43.3 mm (9.8 × 4.7 × 1.7 in)
Interfaces: 1× 2.5G WAN, 1× 2.5G LAN, 3× GE LAN
Antenna: 4×External Omni-directional Antennas
Button: 1× WPS Button, 1× Reset Button
Installation: Desktop, Wall-mount
LED: 1× SYS
IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
Power: Input：100~240V, 50/60Hz, Output: 12V/1.5A
Software
Operation Mode: Router/AP mode
WAN Mode: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
Protocols: IPv4, IPv6
Guest Network: 2.4G Guest Network, 5G Guest Network
Parental Controls: Profile Settings, Time Control, Pause the Internet, Website Filtering
DHCP: Address Reservation, DHCP Client List, DHCP Server
DDNS: MERCUSYS, NO-IP, DynDNS
VPN Server: OpenVPN, PPTP, L2TP/IPsec, WireGuard
VPN Client: OpenVPN, PPTP, L2TP/IPsec, WireGuard
Easymesh: Easymesh Compatible
QoS: Time Settings, Priority Control
Security: SPI Firewall, Access Control, IP & MAC Binding
Kill Switch: Support
ISP Feature: CWMP, ISP Preset(Agile Config), Superadmin
System: Firmware Upgrade, Backup and Restore, Administration, System Log, Time & Language Settings, Reboot
Diagnostics: Ping, Traceroute
LED Management: LED Control, Night Mode
Device Management: MERCUSYS APP, Webpage
Cloud: MERCUSYS ID
Language: Bulgarian, Czech, Danish, German, English, Spanish, Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Polish, Portuguese
Portuguese – Brazil, Romanian, Russian, Slovak, Swedish, Turkish, Ukrainian, Vietnamese, Chinese – Taiwan
Advanced Features: Multi-Link Operation (MLO), Multi-RUs, OFDMA, MU-MIMO, BSS Color, Beamforming
Others
Network Services Enabled by Default:
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UDP
DNS
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
Package Contents:

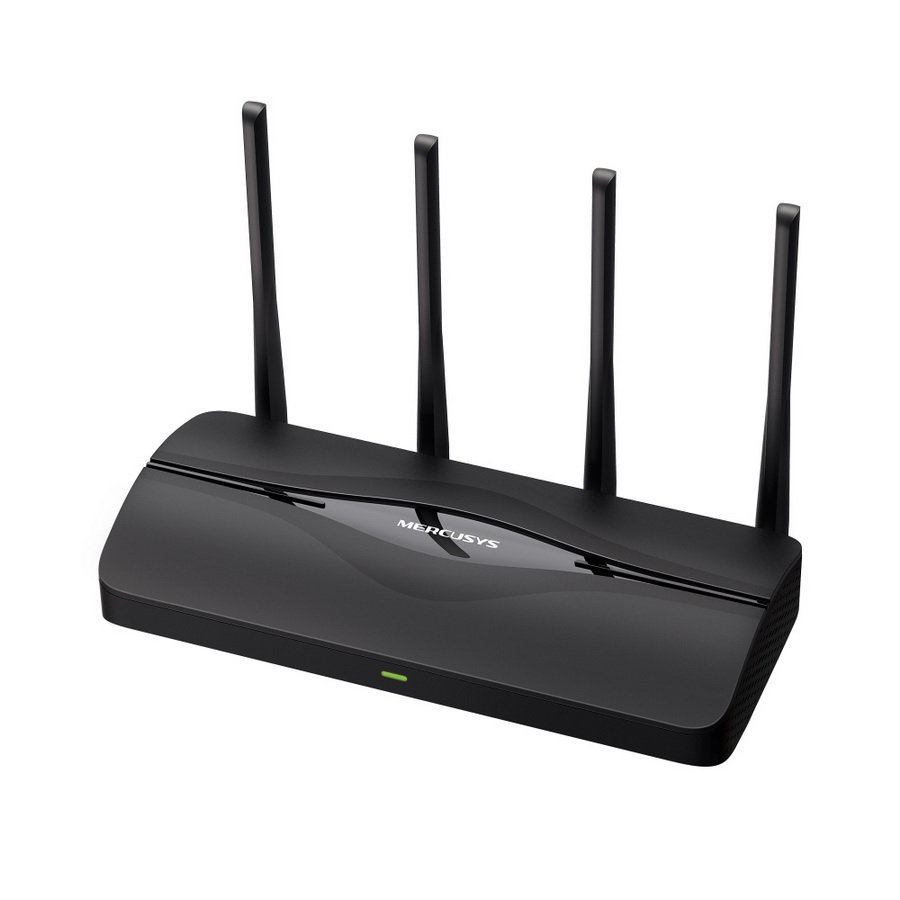

• BE3600 Wi-Fi 7 Router MR27BE
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
Environment:
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
