Specifications

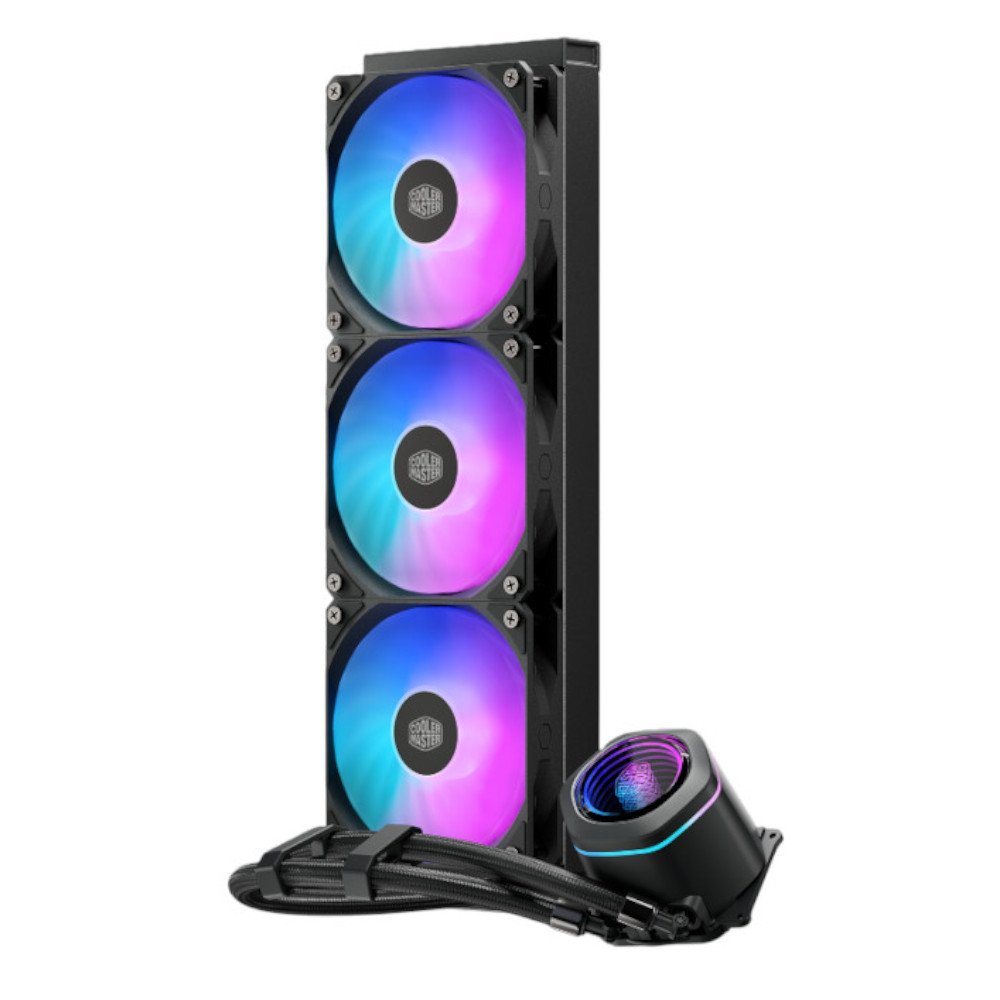

- Product NameMasterLiquid Core Nex Series
- Product Number360 Black: MLX-D36M-A18PA-R1
- CPU SocketIntel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
- CPU SocketAMD® AM5 / AM4
- Radiator MaterialAluminum
- Radiator Dimensions240: 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)
- Radiator Dimensions360: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
- Pump Dimensions83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch)
- Pump ProfilesAddressable RGB
- Pump Speed2800 ±10% RPM
- Pump MTTF>35,000 Hours
- Pump Noise Level25 dBA (Max)
- Pump Rated Voltage12 VDC
- Fan Power Consumption7.2 W
- Pump Connector3-Pin ARGB + 4-Pin PWM
- Tube Length400 mm
- Fan Dimensions (L x W x H)120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
- Fan LEDAddressable RGB
- Fan Quantity240: 2 PCS
- Fan Quantity360: 3 PCS
- Fan Speed650 ~ 1750 RPM ±10%
- Fan Airflow122.4 m³/h (71.9 CFM) (Max)
- Fan Air Pressure1.86 mmH₂O (Max)
- Fan MTTF>40,000 Hours
- Fan Noise Level27.2 dBA (Max)
- Fan Bearing TypeRifle Bearing
- Fan Connector7-Pin PWM + ARGB
- Fan Rated Voltage12 VDC
- Fan Rated Current0.26 A
- Fan Safety Current0.37 A
- Fan Power Consumption3.12W
